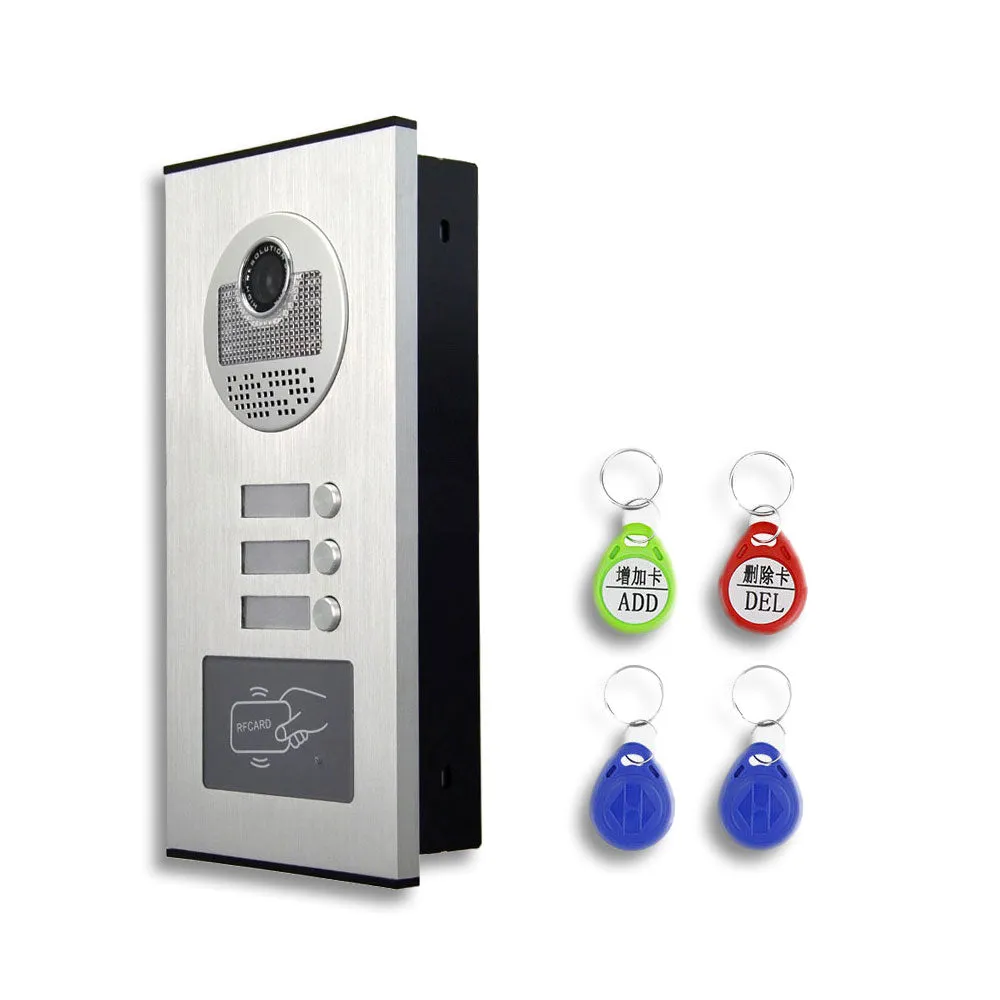

700TVL IR Night Vision Outdoor Camera Door Bell,

Support RFID Card unlock, not including indoor monitor

The outdoor camera has 2，3，4，6buttons, each button can control a monitor independently. This is a high quality device with reliable system performance, perfect function, and flexible configuration. The ourdoor camera build-in a RFID reader, with this function, you can open your door with the RFID key card from outside. Item support 500 user cards.Can be used for multi apartments, especially suitable for low-rise buildings,don't need to connect to internet!

Product Features

700TVL camera
Dual-way intercom
4-Wire Connection
Room Number Slot
Power from indoor monitor
Built-in 5 IR Lights for nigjt vision
Aluminum alloy shell
RFID Card unlocking

Product Details

1. 700TVL IR Night Vision. The outdoor camera build-in 5 infrared LED light.
   With this function, you can see outside no matter day or night. Keep your home more safer.

2. There are has 3 call buttons on the camera, each one can connect to one monitor independently.

3. Support Two-way radio function

When a visitor ring the bell, the monitor will be activated and show the image outside. Press the answer button, then you can talk outside, press the answer button again to turn it off.

4. Can work with DC12V electric lock. Open the door with the unlock button on the indoor monitor

Working with the electric lock, make your home more secure. ( both of the indoor monitors and locks are not included in the package, if you want them, please contact us)

5. The outdoor camera build-in an RFID reader, with this function, you can open your door with the RFID key card from outside. Item support 500 user cards.

Product Specification:

• Function: video intercom, Night vision, HD camera, RFID unlocking
  • Camera Resolution: 700TVL
  • Night Vision: Up to 2 meters
  • Working Temperature: -35 °C ~ 55 °C
  • View angle: 85° to 90°
  • User Capacity: 500 user cards
  • Most long-distance: 100 meters
  • Installation: Embedded mounted
  • Material: ABS Plastic, Aluminum wire drawing
  • Wire Syste: 4 Wire system

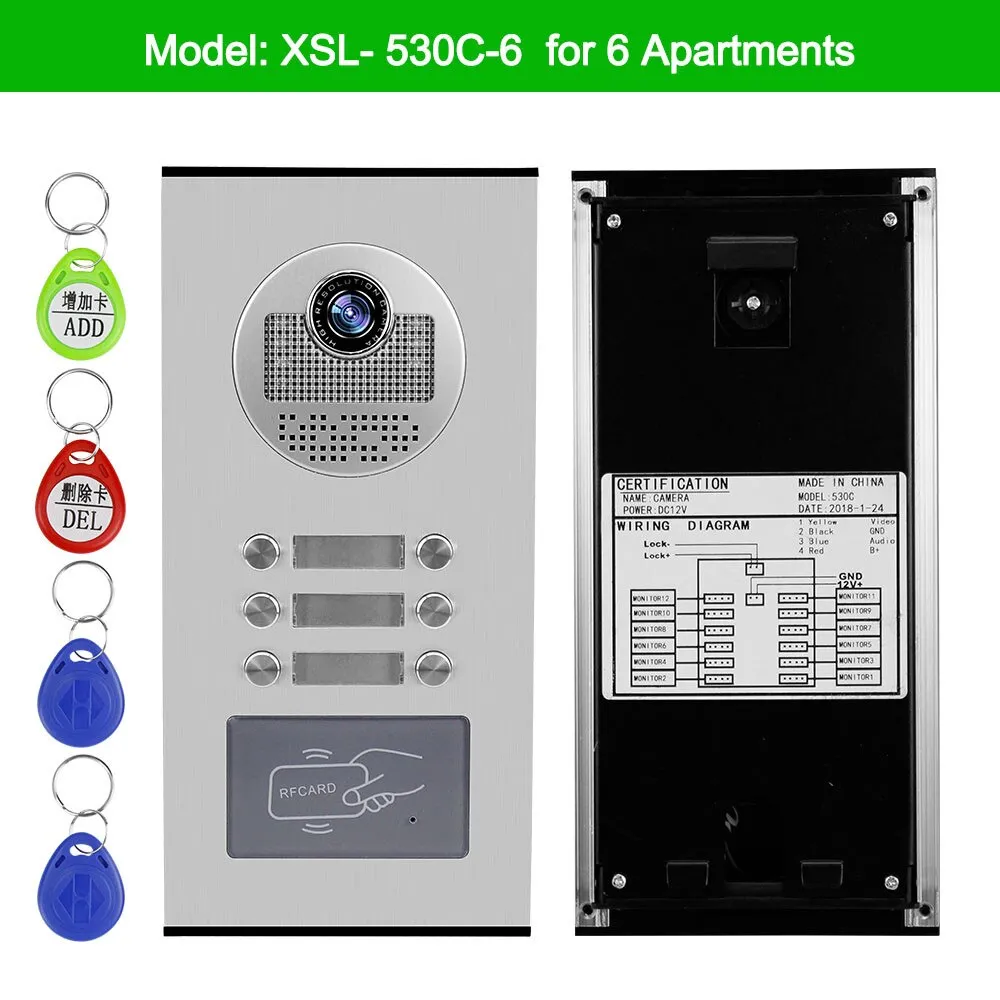

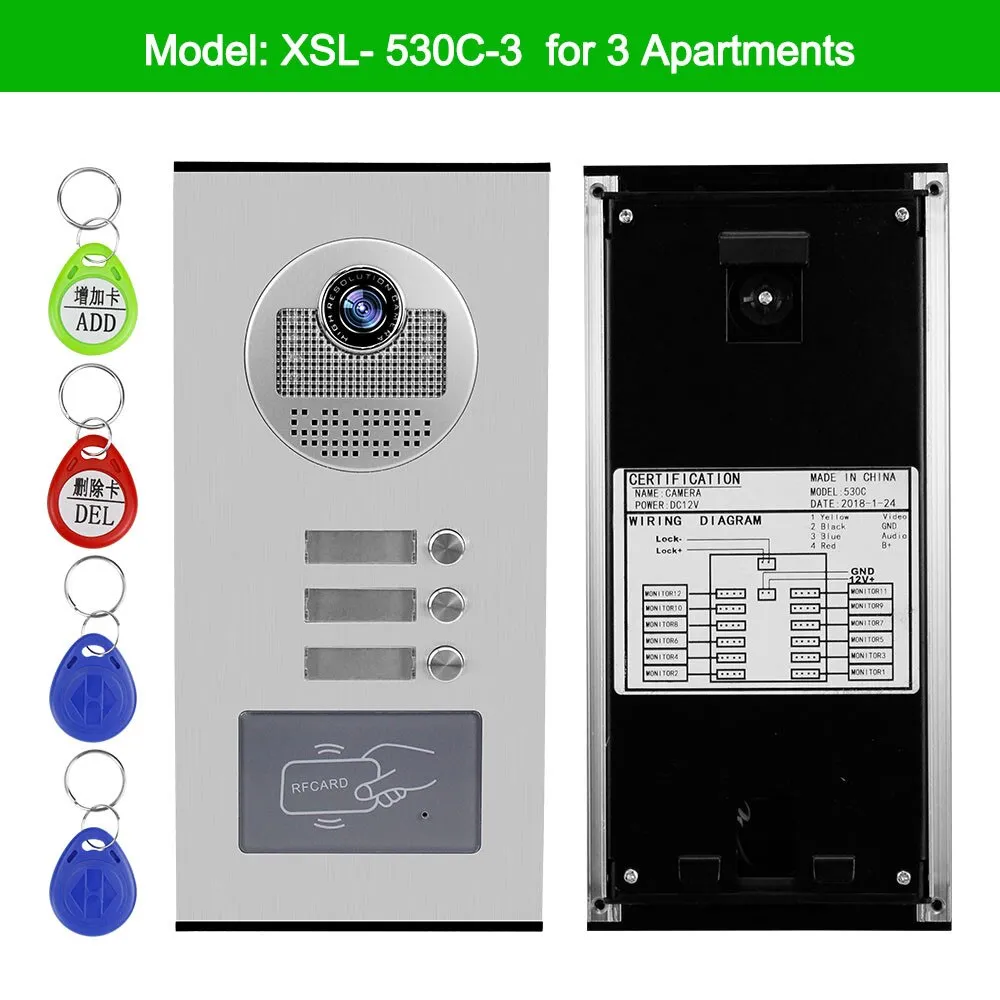

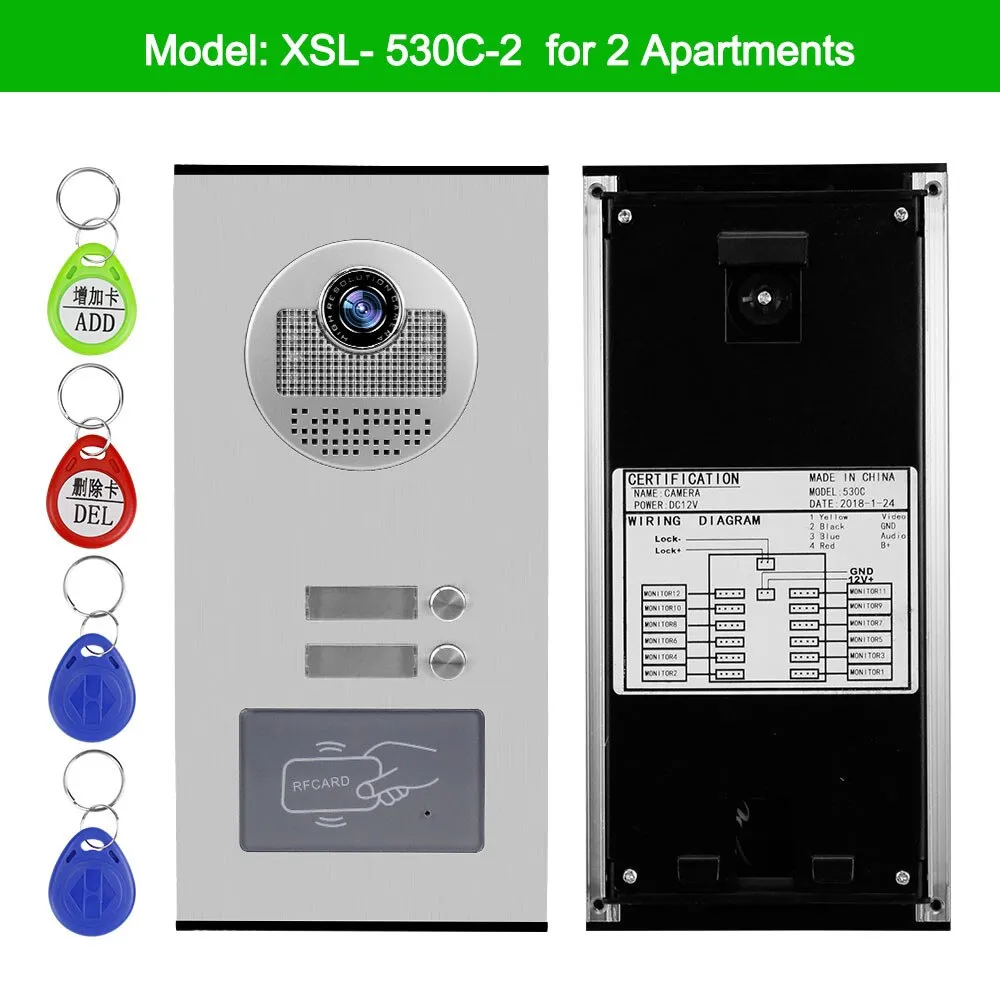

  • We have the camera with 2 / 3 / 4 / 6buttions too.

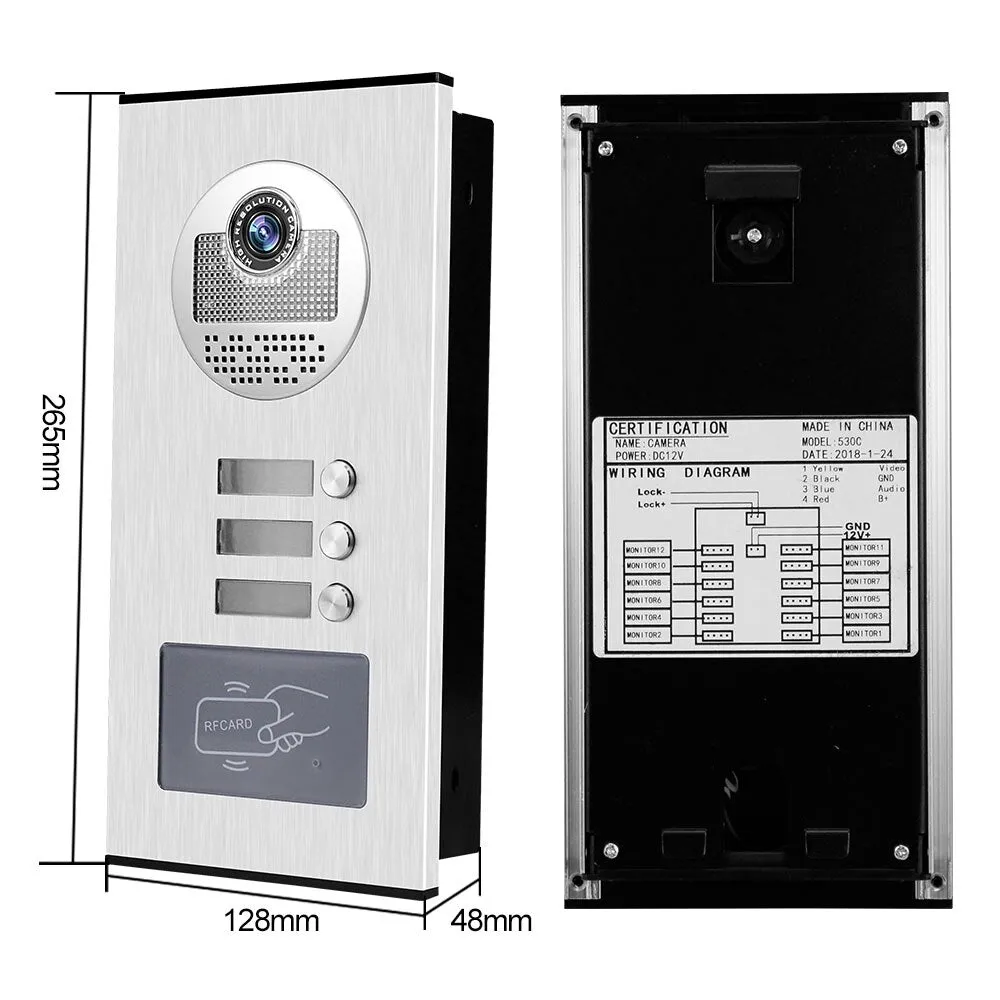

  • 2-6 key dimension: 265mm * 128mm * 48mm
  • mounting dimension: 245mm * 117mm * 35mm

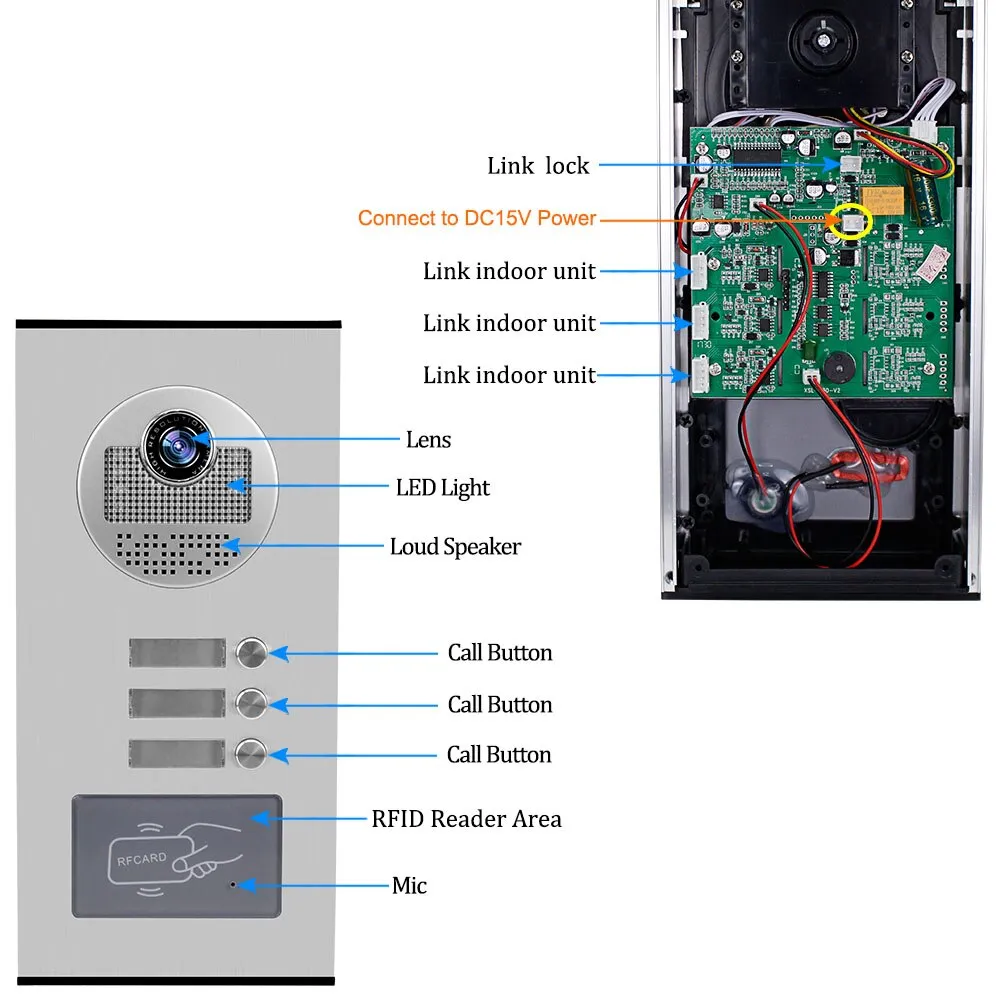

Wiring Instruction

It is a 4-wire system, that uses a 4-core cable to connect the camera to the monitor.
(Please note the locks, indoor unit at below photo is not included, if you need, please feel free to contact us）

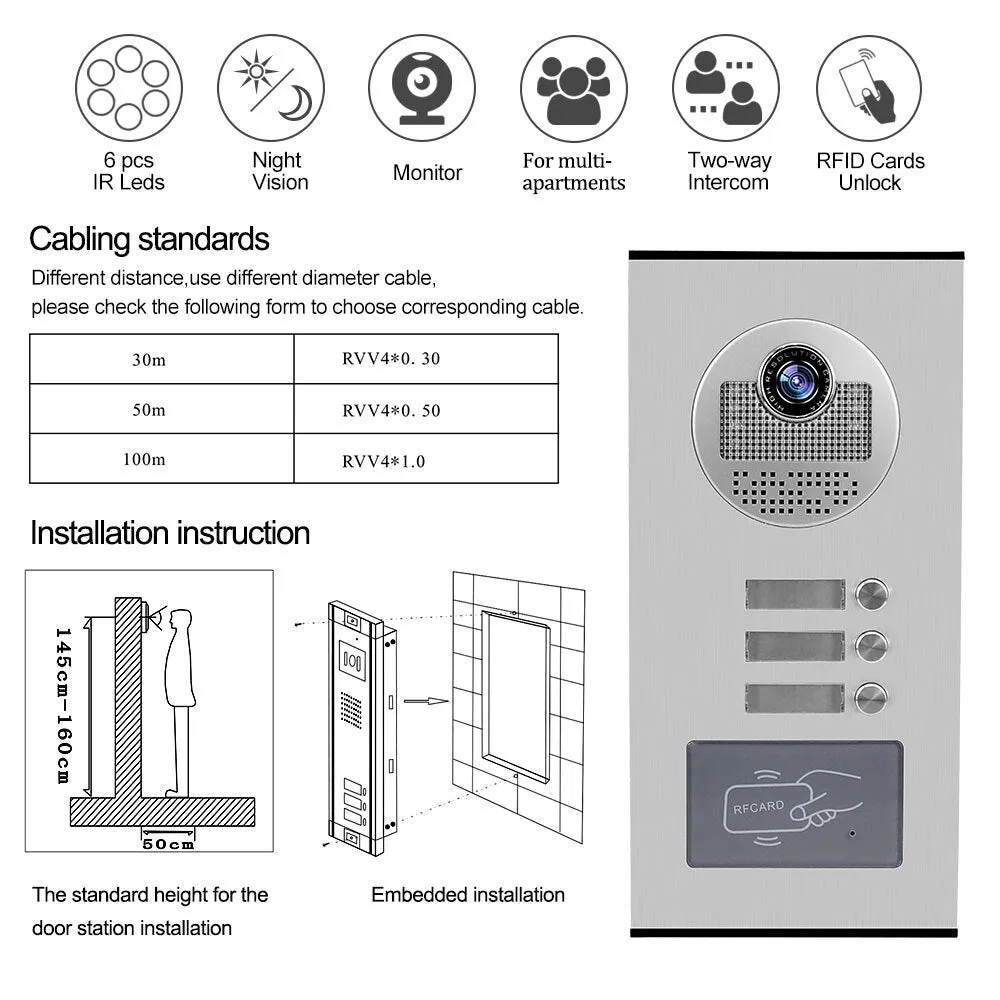

Cabling standards

Different distances using different diameter cables, please check the following form to choose the corresponding cable.

Installation instruction

Very Important

This camera can only work with any of the monitors as the below picture. We can not guarantee if your own monitor will work with our camera. If you already have such a monitor as the picture or want to add an extra camera, please feel free to contact us before buying. Thank you!
