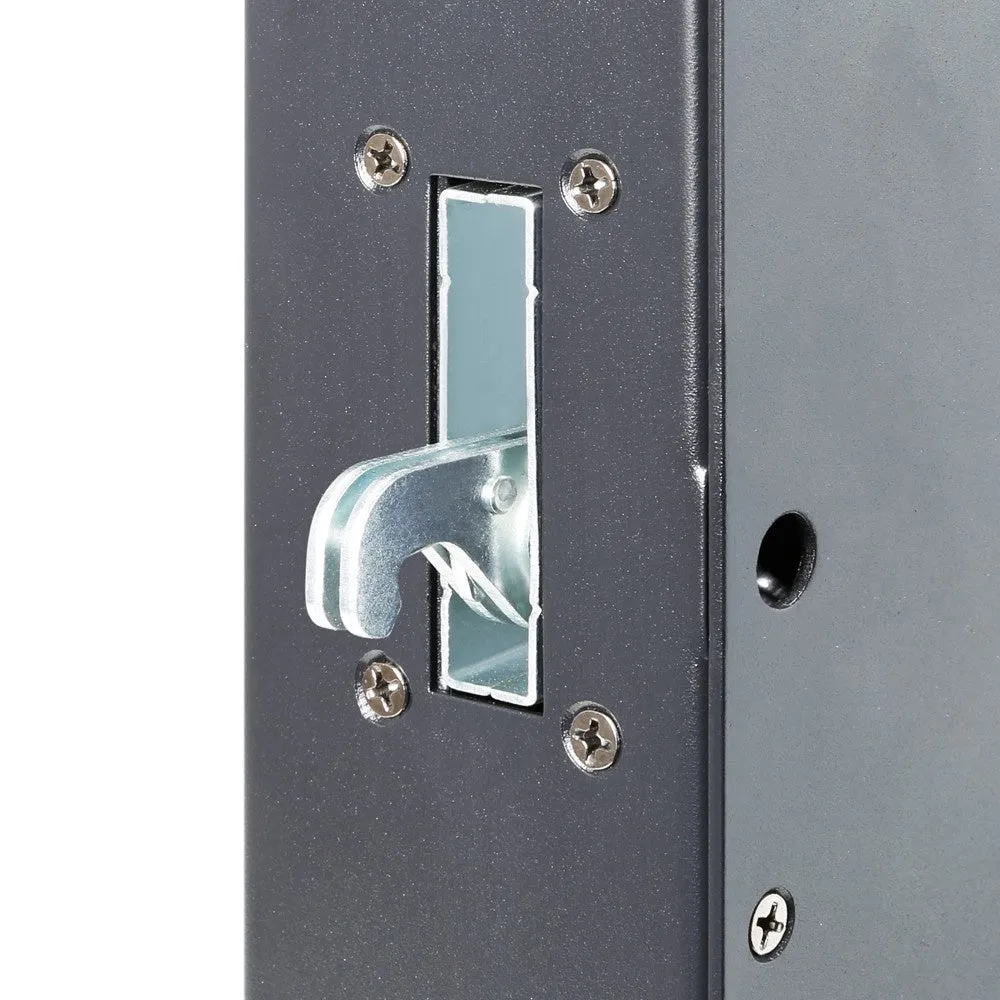

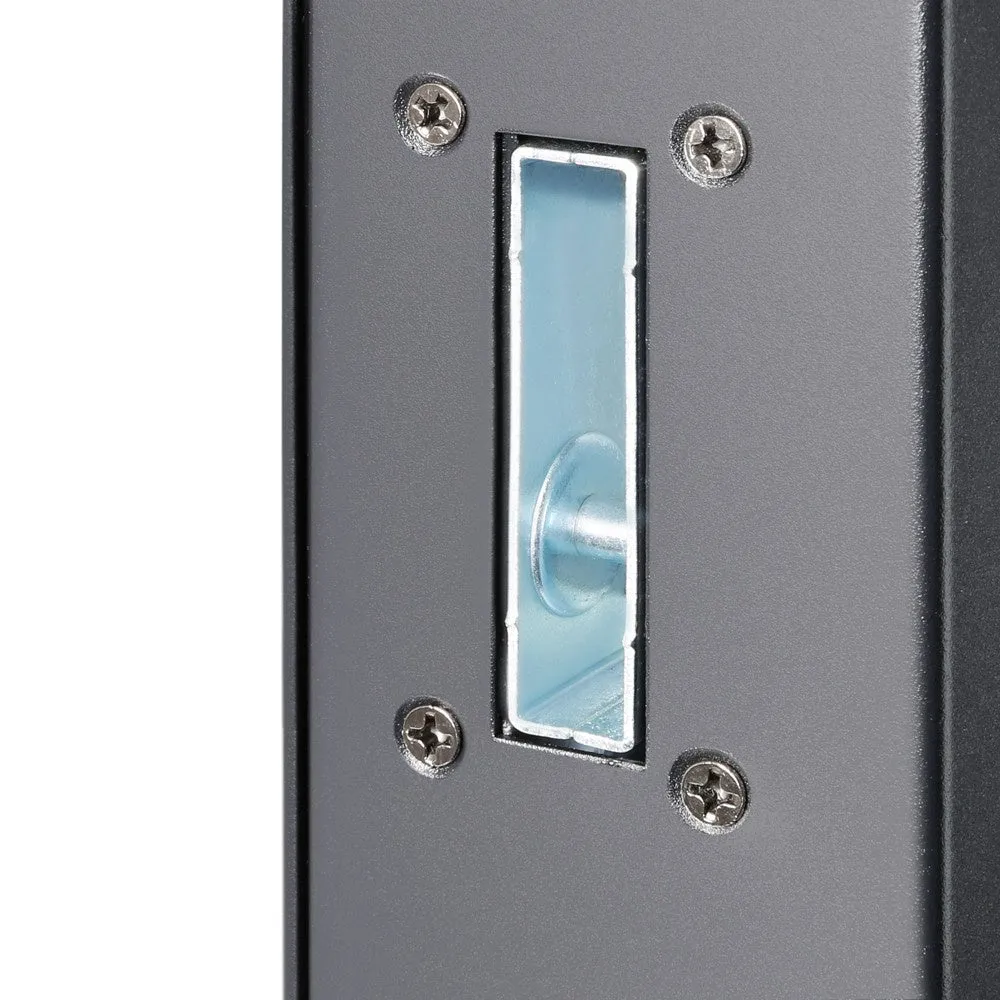

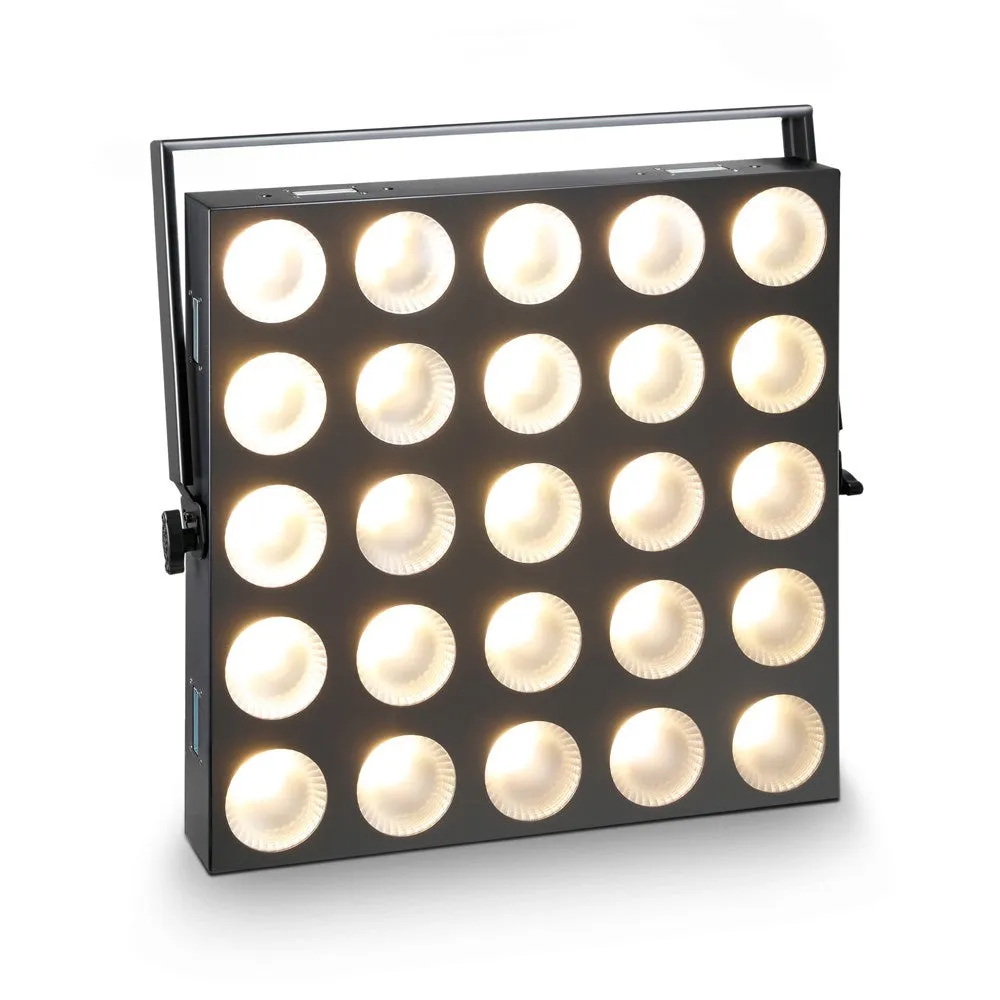

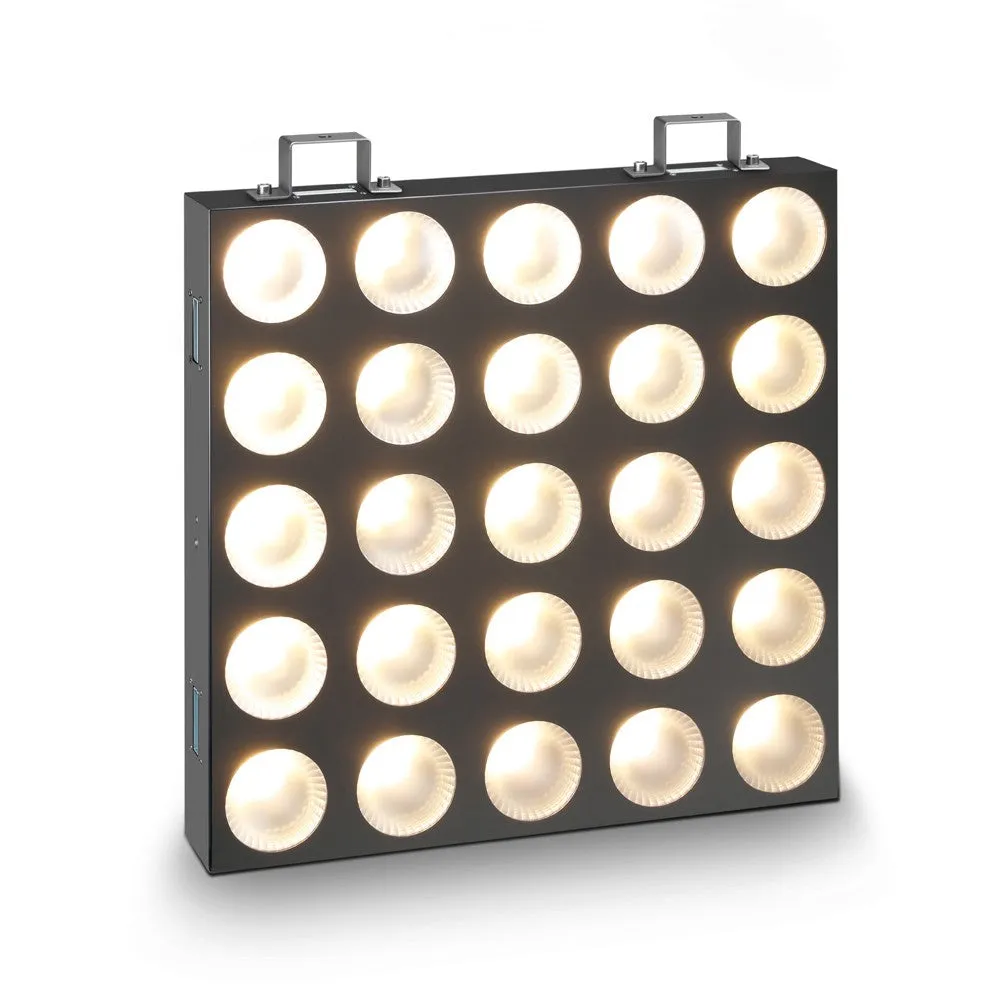

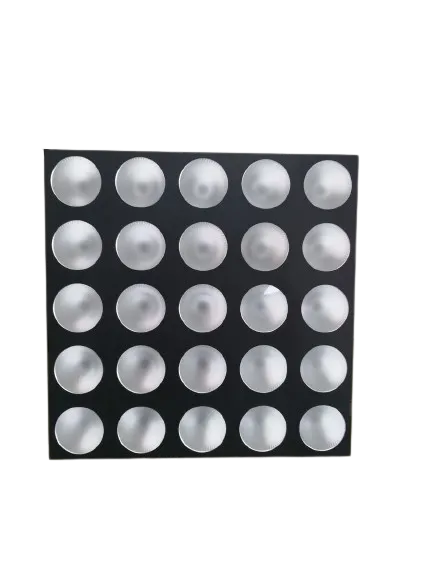

With a 5 x 5 array of warm white 3 watt LEDs and flicker-free performance the Cameo Matrix Panel creates exciting blinder, chase and strobe effects. Featuring powerful single pixel control it is the perfect choice for mapping alphabetic characters, numerals and complete messages. Recessed latches on all sides enable connecting multiple panels for large, impressive backdrops.

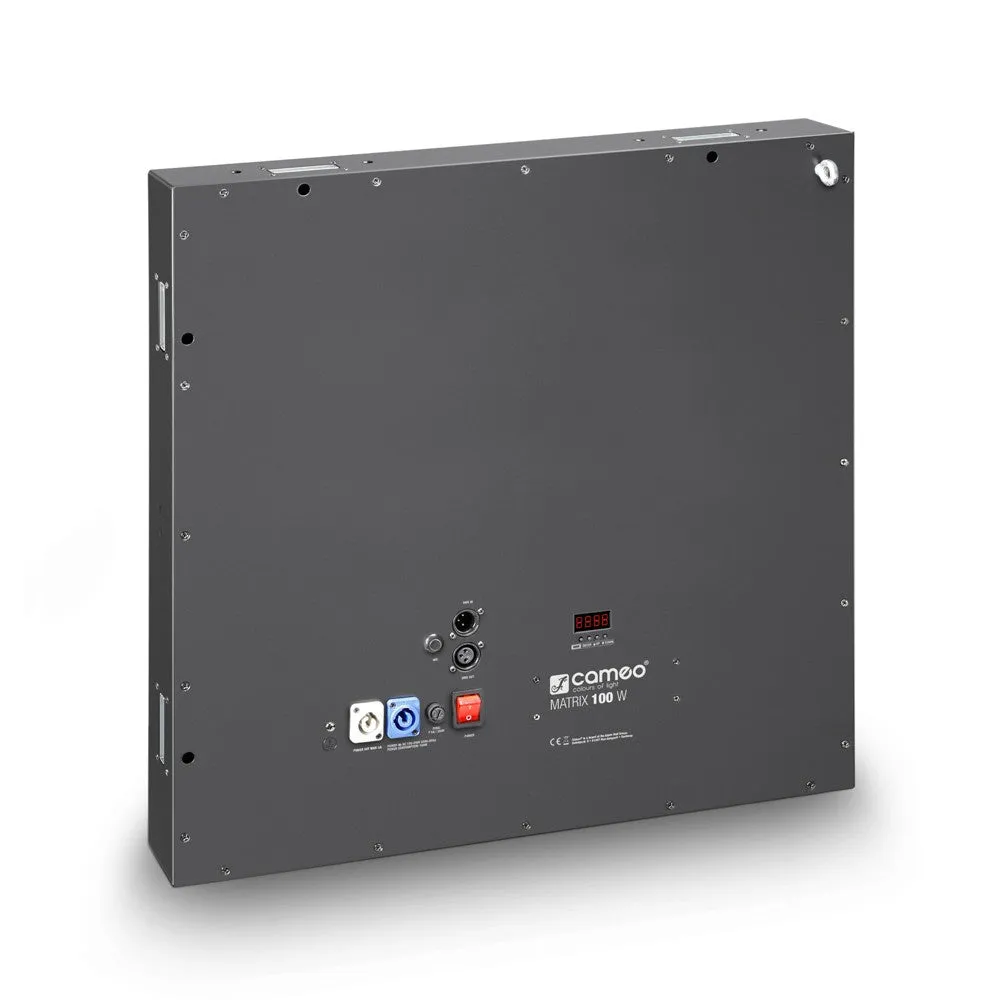

The Matrix Panel includes four modes of DMX control, sound activation and 4 selectable dimming curves. It sports master, slave and standalone capability plus highly efficient convection cooling for noiseless operation. The ultra flat all-metal enclosure provides 3-pin DMX input and output, blue and white power connectors, a bright 4-button display and safety eye. The Matrix Panel comes with a mounting bracket and runs on all voltages from 100 – 240 volts AC.
Features
- 5 x 5 LED Matrix Panel with single pixel control
- 25 x 3 W warm white LEDs
- 4 DMX modes, sound activation
- Master, slave and standalone capability
- Blinder, chase and strobe effects
- Alphabetic character and numeral mapping
- 4 selectable dimming curves
- Noiseless and flicker-free operation
- Ultra flat enclosure

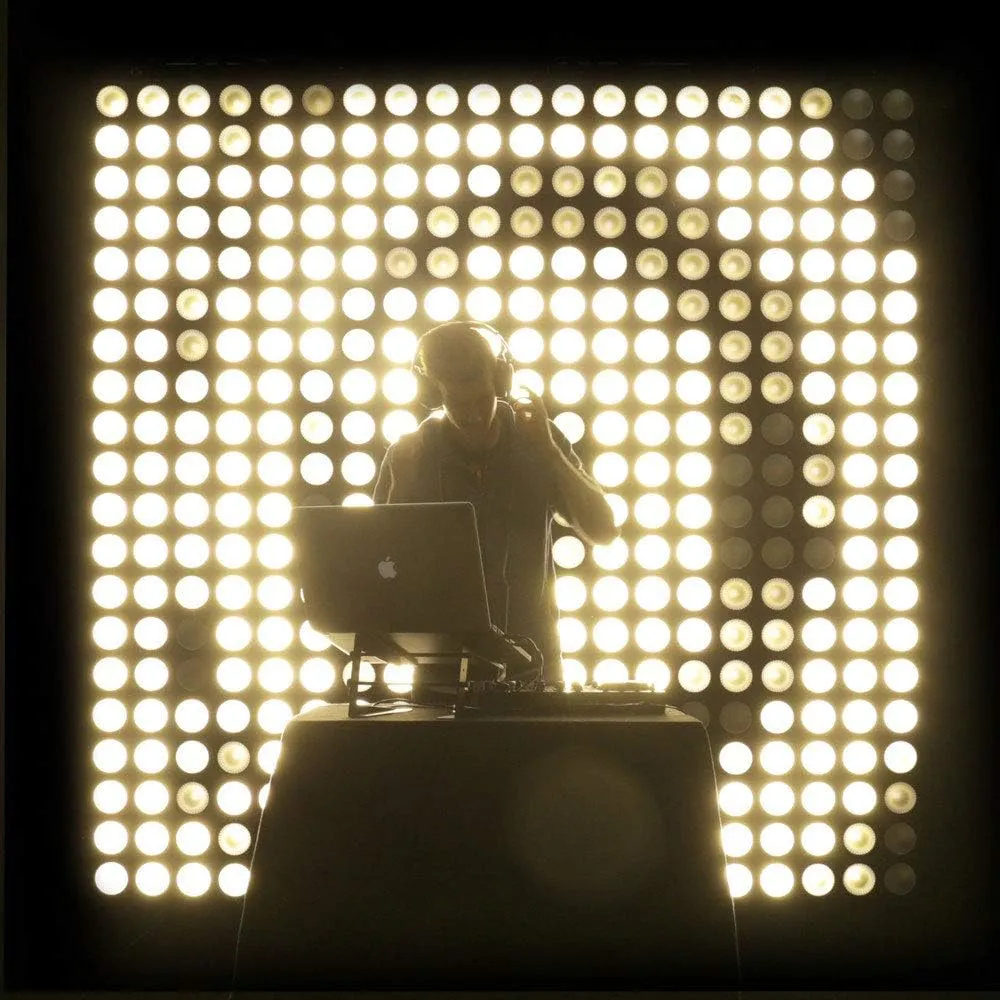

- Even more impressive in multiples

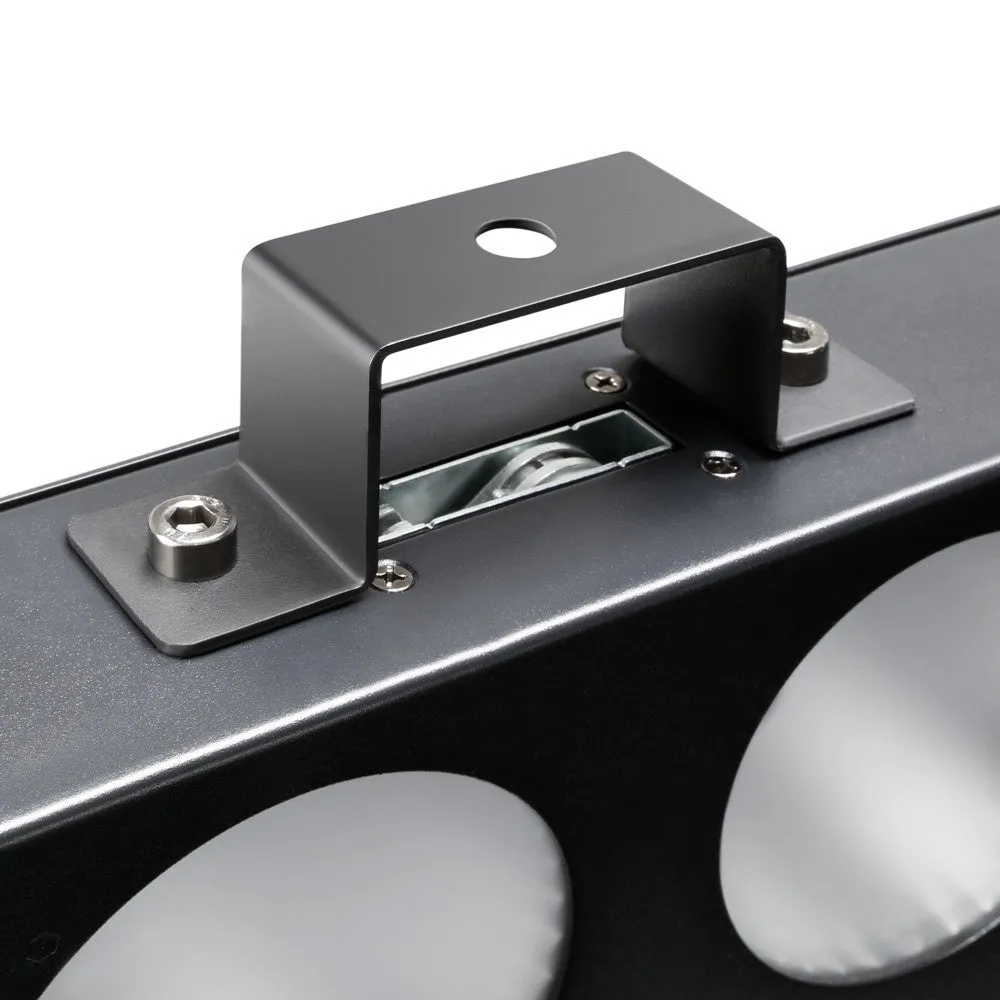

- swivel bracket, 2 x omega mounting, LED MATRIX PANEL, safety eyelet
Specifications
- Product type: LED Lighting Effects
- Type: LED Effect Lights
- Colour spectrum: Warm white
- Color temperature: 3300 K
- Number of LEDs: 25
- LED type: 3 W Single LED
- Dispersion: 40 °
- Refresh rate: 3400 Hz
- DMX input: XLR 3-pin male
- DMX output: XLR 3-pin female
- DMX mode: 10-channel, 2-channel, 28-channel, 5-channel
- DMX Functions: Auto programs, Dimmer Fine, master dimmer, sound programs, Stroboscope
- Standalone modes: Master / Slave mode, Music control
- Controls: Down, Enter, Mode, Up
- Indicators: 4-digit LED display
- Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
- Power consumption: 100 W
- Fuse: F3AL / 250 V
- Power connector: Blue and white power I/O
- Housing material: Metal
- Cabinet colour: Black
- Cooling: Convection
- Operating Temperature: 10 - 40 °C
- Illuminance: 6100lx @ 1m
- Width: 580 mm
- Height: 580 mm
- Depth: 67 mm
- Weight: 8 kg
