Product Details
＋
Key Features
- Weatherproof IP65 Rated
- AC 100-240VAC, 50/60Hz
- 3-Channel RGB Color Mixing
- 4x 3W Tri-Color LEDs
- Electronic Strobe and Dimming
- 28° Beam Angle
- DMX Channels: 3, 5, 7
- Silent Convection Cooling
- Master/Slave and Stand-alone Modes

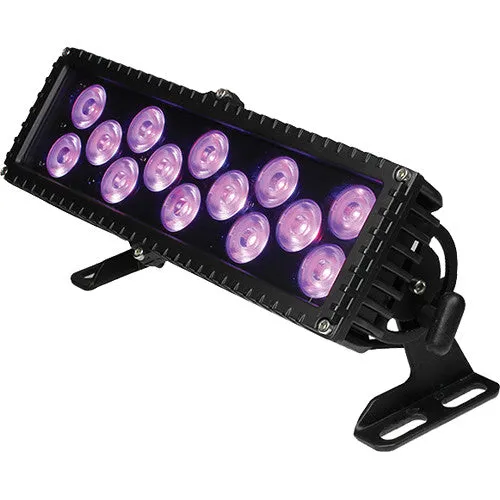

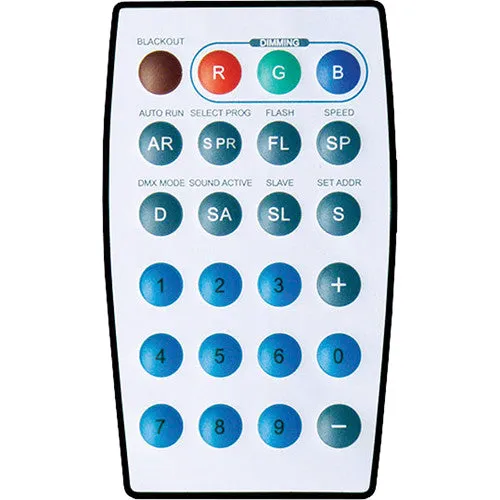

The Motif Fresco Outdoor LED Wash Fixture from Blizzard Lighting is an IP65-rated luminaire with a water-resistant power cable that employs fourteen 3W LEDs to create rich, vibrant colors. The light offers built-in programs, static colors, Master/Slave and Stand-alone Modes. You can control RGB color mixing and 0-100% dimming remotely via DMX or an optional IR remote or make manual adjustments locally.

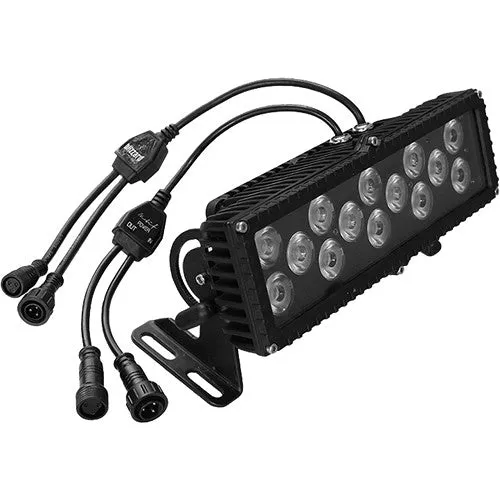

The Motif Fresco's 25 degree beam angle make it a good choice for an accent light, while its 3, 5, or 7-channel DMX modes and silent convection cooling make it a theatrical and production asset as well, especially for location shooting. The light comes with an IP-rated AC power cord with cable cap and mounting brackets.
Attributes
Luminous Intensity
lux @ 6.56' (2.0 m)
Red: 515
Green: 820
Blue: 900
All: 2,010
Red: 515
Green: 820
Blue: 900
All: 2,010
Blizzard Motif Fresco Specs
Light
| Light Type | Linear/Bar Light |
| Light Source | 14 x Color LED - 3 W |
| Light Source Life Expectancy | 100,000 Hours |
| Colors | Red Blue Green |
| Photometrics | 186.7 fc / 2010 Lux at 6.6' / 2 m (Full On) |
| Beam Angle | 28° |
| Shutter / Strobe | Electronic |
| Iris | No |
| Focus | Manual |
| Zoom Adjustment | None |
| Dimming | Electronic, 0 to 100% |
Performance
| Operating Modes | DMX, Master/Slave, Standalone |
| Macros / Programs | None |
| Effects | Strobe |
| Gobos | None |
Control
| Control Protocols | DMX512 |
| DMX Channel Modes | 3 Mode(s): 3 / 5 / 7-Channel |
| Display / Controls | LED / 4-Button |
| Remote Control | IR Remote (with Optional Equipment) |
Connectivity
| Inputs/Outputs | 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output |
Power
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x Proprietary Output: 1 x Proprietary |
| Fuse | 2 A 250 V |
| Power / Current Consumption | 44 W / 0.68 A |
Environmental
| IP Rating | IP65 |
| Operating Temperature | 104°F / 40°C |
Physical
| Mounting | Mounting Bracket |
| Duty Cycle | None |
| Exterior Color | Black |
| Max Housing Temperature | 104°F / 40°C |
| Cooling | Heat Sink |
| Dimensions | 11.8 x 3.15 x 3.5" / 30 x 8 x 9 cm |
| Weight | 5.6 lb / 2.6 kg |
Packaging Info
| Package Weight | 7.73 lb |
| Box Dimensions (LxWxH) | 14.9 x 8.75 x 6.3" |
